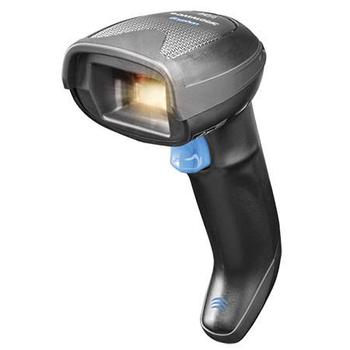

DATALOGIC Gryphon GM4500, Kit, USB, 433 MHz, Black (Kit includes scanner, WLC4090-BK-433 base and USB cable 90A052258)
Forsiden
DATALOGIC Gryphon GM4500, Kit, USB, 433 MHz, Black (Kit includes scanner, WLC4090-BK-433 base and USB cable 90A052258)
Du må logge inn for å handle/se priser.
|
DATALOGIC Gryphon GM4500, Kit, USB, 433 MHz, Black (Kit includes scanner, WLC4090-BK-433 base and USB cable 90A052258)
|
Beskrivelse
Spesifikasjoner
The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.
The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).
One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Scanning |
---|
Modell/Type | Håndholdt strekkodeleser |
Skannetype | 1D/2D |
Sensortype | Laser |
Lineære (1D)-strekkoder støttet | Code 39,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417,U.P.C. |
Matrix (2D)-strekkoder støttet | Aztec Code, Datamatrise, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
Optisk sensoroppløsning (B x H) | 1280 x 800 piksler |
Lysnivåer (direkte sollys) | 0 - 100000 lx |
Bølgelengde | 650 nm |
Tilt lesnings-vinkel | 0 - 360° |
Pitch lesnings-vinkel | -65 - 65° |
Yaw lesnings-vinkel | -65 - 65° |
Tilkoblingsevne |
---|
Tilkoblingsteknologi | Ledning & Trådløs |
Standard grensesnitt | RF kabel-fri, USB |
Rekkevidde trådløs ruter | 50 m |
Arbeidsfrekvens | 433 MHz |
Design |
---|
Produktfarge | Svart |
Internasjonal beskyttelse (IP) kode | IP52 |
RoHS-overholdelse | |
Energihåndtering |
---|
Strømkildetype | Batteri |
Batteriteknologi | Lithium-Ion (Li-Ion) |
Batterikapasitet | 3250 mAh |
Batterispenning | 12 V |
Antall lesninger pr. opladning | 80000 |
Oppladingstid | 4 timer |
Strømstyrke | 4.5 - 14 V |
Vekt og dimensjoner |
---|
Bredde | 109 mm |
Dybde | 68 mm |
Høyde | 166 mm |
Vekt | 235 g |
Datainnpakking |
---|
Kabler inkludert | USB |
Lader | |
Miljømessige forhold |
---|
Driftstemperaturområde | 0 - 50 °C |
Oppbevaringstemperaturomåde (Celsius) | -40 - 70 °C |
Luftfuktighetsområde ved drift | 0 - 95% |
